Without vent holes, the pressure built from the heat of the kettles can cause steel to explode in the zinc kettle, and seriously injure personnel, while destroying your material. For everyone’s safety in the plant, and for the safety of your material, we request adding vent holes to your steel before you send it for galvanizing.

Vent holes also help the steel to be coated evenly throughout the inside and outside of the steel. Hot-dip galvanizing is the only process that protects both the inside and outside of tubular steel structures, and proper vent holes help this process to be effective. Lack of vent holes can cause the steel to have bare spots, uneven texture, and other zinc coating problems, so it’s important to ensure holes are placed properly so steel can be evenly coated. Even if the drain hole is only an inch away from its ideal location, that inch can create an air pocket, resulting in an uncoated area, which can result in rust staining even in the coated regions. An even coating of zinc helps with your steel’s corrosion protection and aesthetics and prevents unsightly zinc build up.

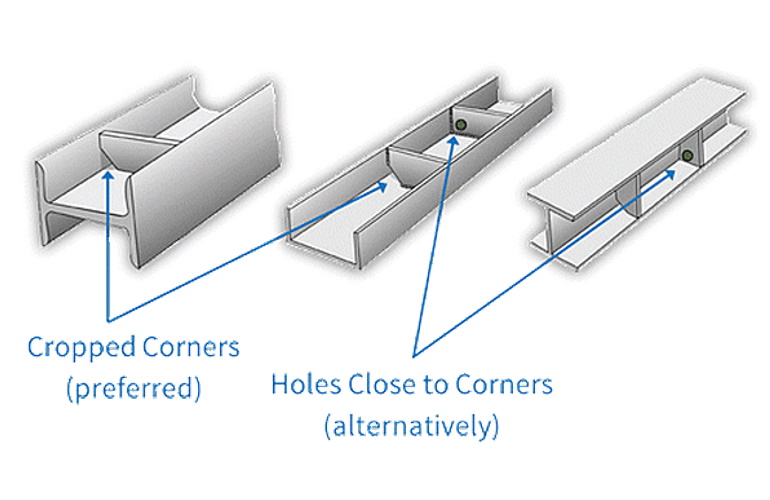

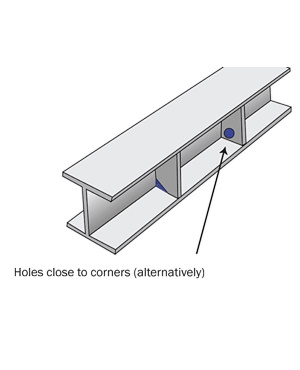

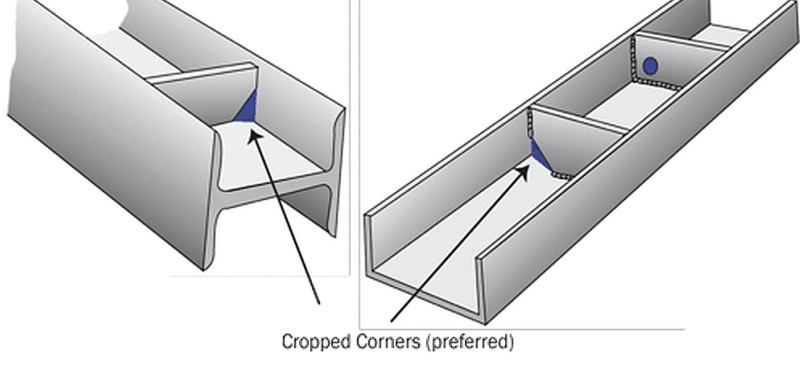

Appropriately placed and sized vent holes prevent the steel from floating in the zinc bath. Full immersion of the zinc is essential to the quality hot-dip galvanizing. The size and placement of these vent holes are different depending on the steel being galvanized, so check with the galvanizer where these holes are necessary to ensure the steel can be fully immersed in the zinc bath.
